We focus exclusively on the design and manufacture of quality LED Aluminum profile, LED strip and the complete LED linear light.
4 Years
| Ask Lasest Price | |
| Brand Name : | TUNGWILLE |
| Model Number : | TW1708B |
| Certification : | CE,ISO |
| Price : | $0.6~$1.08/M |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10,000 meters/day |
| Delivery Time : | 2-5 working days |

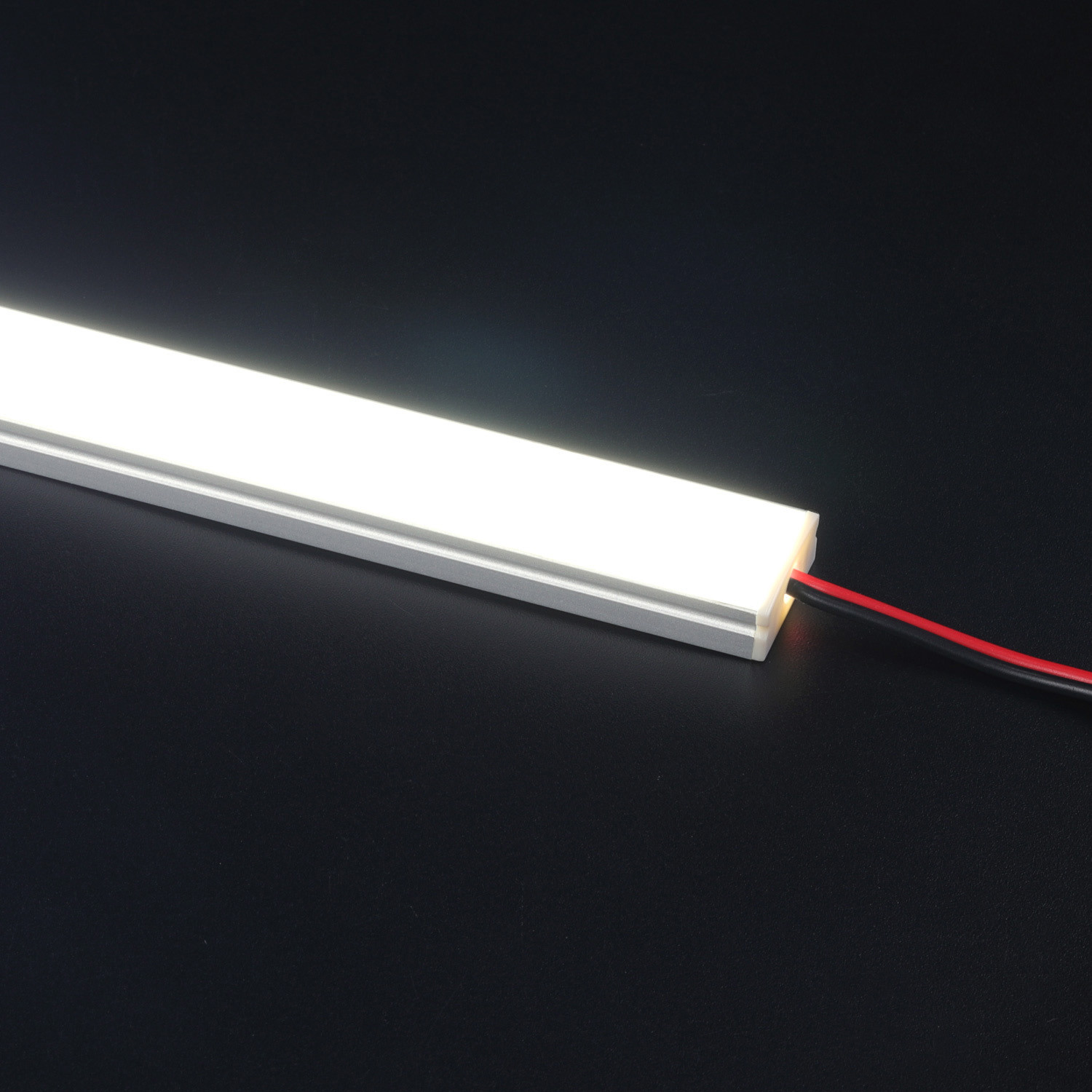

Housing Led Light Extrusion Aluminum Profile Heatsink Surface Led Channel
| Product name | Housing Led Light Extrusion Aluminum Profile Heatsink Surface Led Channel |
| Material | 6063 Aluminum Alloy |
| Surface treatment | Anodized or Powder Coated |
| Length | 1M 2M Or Customized length |
| Color | Silver, White, Black, Can be custom-made |
| Size | L2000*W17*H8mm |
| Accessories | End caps, Clips |
| Diffuser material | PC |
Features:
TW1708B is a basic half inch square channel that fits low pressure LED strips 8mm and 10mm wide. With a variety of coverage and finish options, this passageway can be used both indoors and outdoors to create custom LED lighting fixtures. Choose from non-anodized aluminum, double anodized aluminum, double anodized black, or white finish. The additional frosted interior cover provides a clean strip of light, with at least 3 leds per inch when using densely spaced SMD LED strips. Use a focusing lens to change the beam Angle of the LED strip to 10° for a more concentrated beam or wall wash. Outdoor cover panels can achieve IP67 rating when sealed with a silicon adhesive and are recommended for use in any outdoor or UV exposed environment. The channel also has a 3-meter length of silver anodized,
Materials of Aluminium Profiles:
1. Heat Sink: 6063-T5 maerial aluminum
Aviation aluminum has good corrosion resistance and toughness. Easy
to polish, solid color, anodized. It's a typical extrusion
material. Widely used in building profiles, cars, platforms,
furniture, elevators, fences and other lamps radiator.
2. PC cover: Mitsubishi PC from Japan
PC(polycarbonate) is an amorphous thermoplastic resin with
excellent electrical insulation, ductility,
Stable size, chemical corrosion resistance. It has high strength,
heat resistance and cold resistance
Resistance. It also has the advantages of self extinguishing, flame
retardant, non-toxic, coloring and so on.
It has good strength and toughness.
3. End cap
ABS material for anti-aging/Aluminum material/PC material
4. Clips
Stainless steel (201/304) clips for anti-rusting
Why Tungwille is your #1 choice:
Fast lead time
We hold a large inventory of our LED profiles in our warehouse and
most orders are shipped in 3-10 business days.
FAQ:
Q1. What is the length in stock ?
A1: 2Meters/2.5Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length
in any quantity
Q3. What is the max length of the LED profile ?
A3. Max in 3meters for air shipment, 5meters for sea shipment
Q4. What is the material of diffuser ?
A4: PC or PMMA
Q5: Can you company help to assembly the led strip and driver ?
A5: Yes, we provide one-stop assembly service.
Q6: Can we have the profile in other color ?
A6: Yes, power coating and anodizing available
Q7: What is the delivery time ?
A7: 5-15 working days according to your order volume.
Q8: Is free sample available for quality approve ?
A8: Yes, free sample in short piece is available.
|
|
